ZT-100 Water In CPO Monitor

Water In Palm Oil Monitoring

The ZelenTech ZT-100 Water In Palm Oil / CPO monitor offers real-time, fast response monitoring suitable for CPO and vegetable oils.

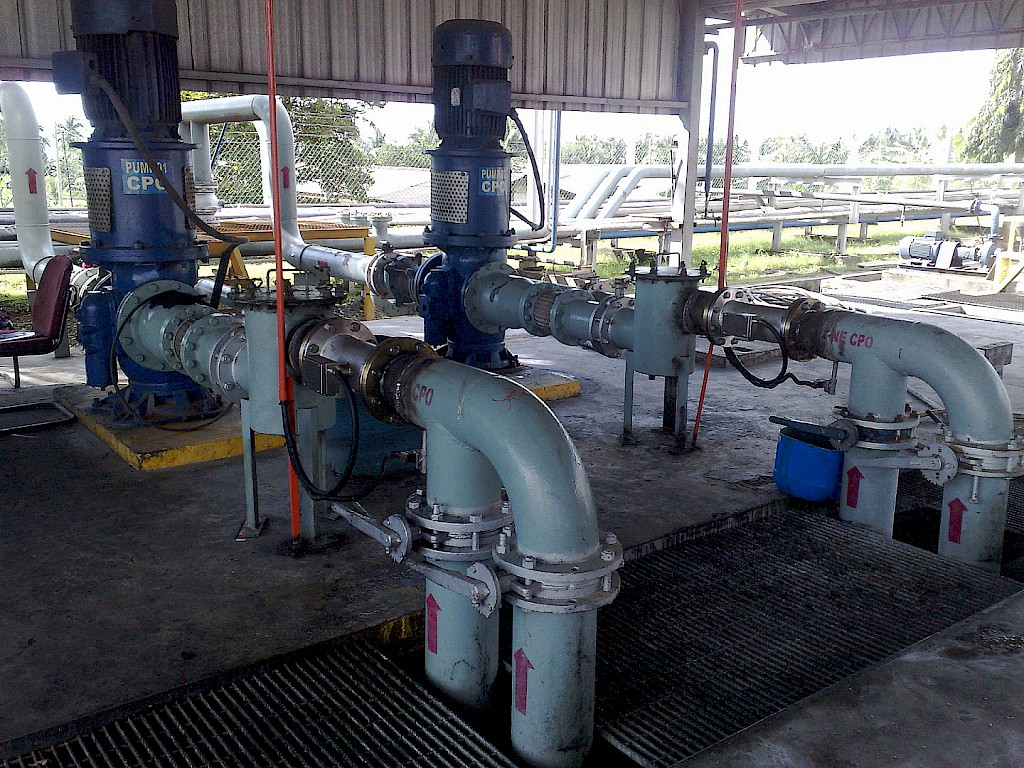

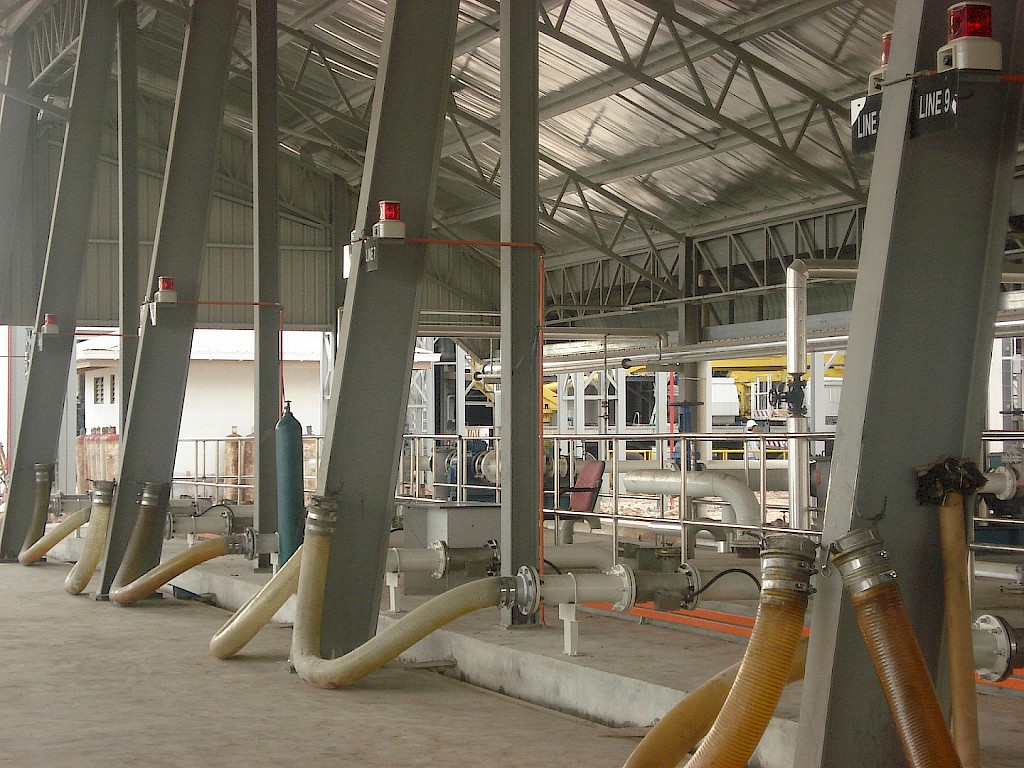

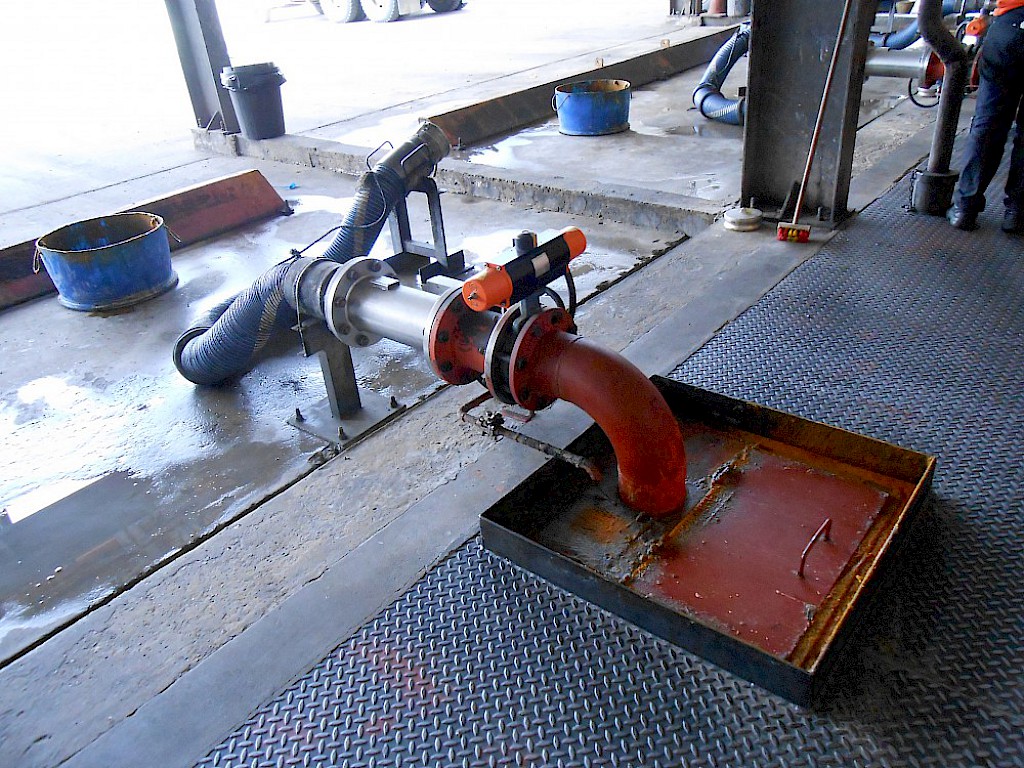

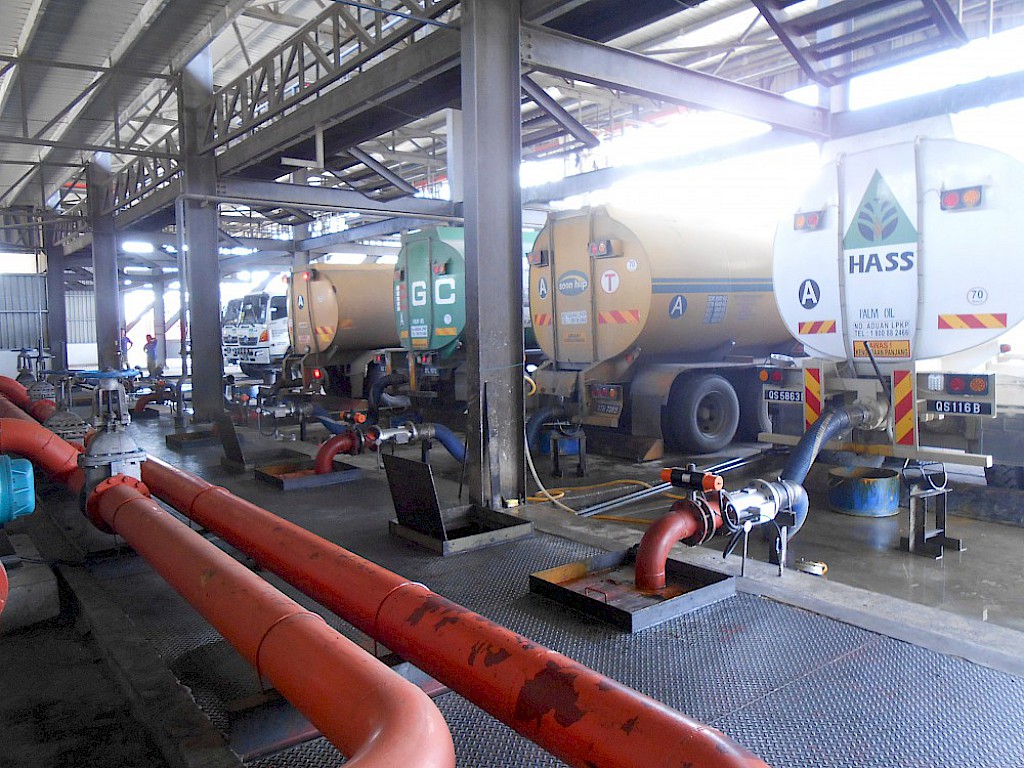

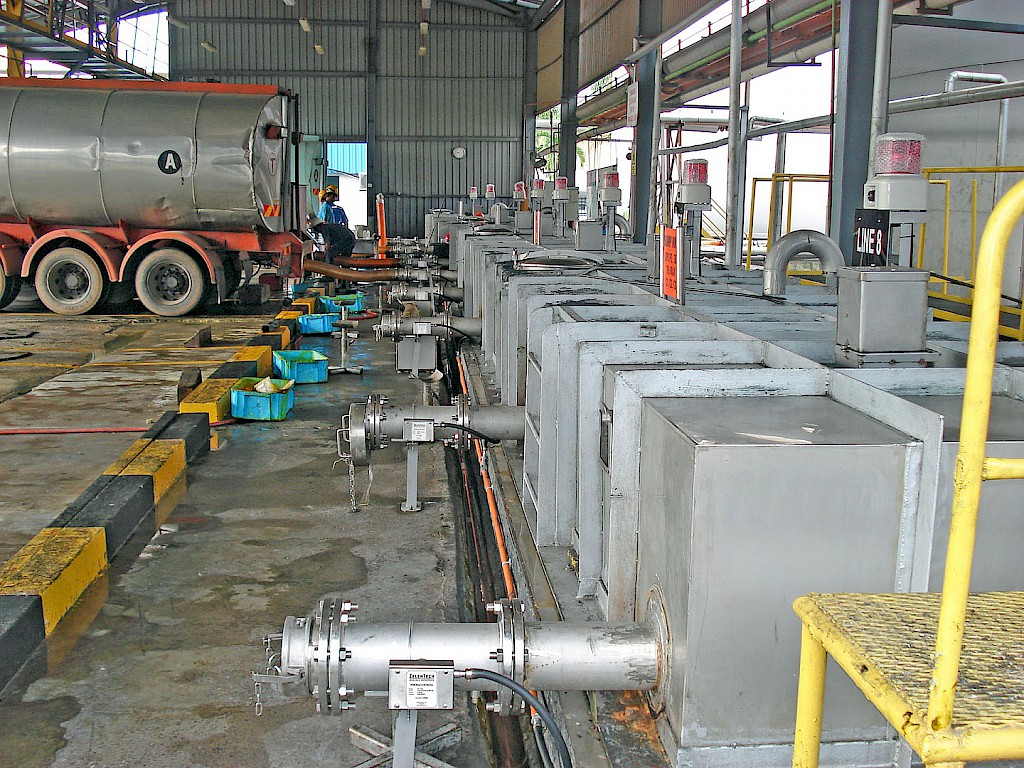

The monitor can be used in various process stages such as receiving bay, storage tanks, filtering, drying, crystallizing and more. The instrument is developed to accurately measure the content of water in ALL forms, free or dissolved. Awareness provides for preventive measures to take place. The advanced microprocessor enables fast, reliable and drift-free monitoring.

Technical Specifications

Measurement Performance

	Low Range	High Range
Measurement Range	0–25%	0–100%
Resolution	0.001%	0.05%
Accuracy	0.01%	0.05%
Repeatability	0.01% Absolute
Sensitivity	0.01%

Mechanical

Nominal Sizes	1″ to 12″
Pressure Rating	150#, 300#, 600#
Process Temperature	+120°C (High Temp Option available)
Wetted Material (Sensor)	SS316L (Optional Duplex, Inconel or other steels)
Wetted Material (Spool)	SS316L (other material available)
Seals & Insulators	PEEK
Process Connection	ANSI, DIN, JIS

Electronics Options

Every ZT-100 measuring element works with the electronics below. The choice is electrical rather than mechanical — the enclosure, the mounting and the process connection do not change with it.

ZT-100-BLoop powered, two-wire, HART. The variant shipping today.
ZT-100-B2The next loop-powered board — intrinsically safe, improved throughout.Coming soon
ZT-100-C24 VDC, full-colour display, Bluetooth, HART and Modbus RTU.In release preparation
ZT-100-FCFull-Cut — 0–100% water cut, through phase inversion.In release preparation
