Instrumentation and process equipment for fluid measurement
ZT-100 Water Cut Analyzers
The ZT-100 series is our flagship line of inline water cut analyzers. Using capacitance-based sensing, these instruments provide continuous, real-time measurement of water content in crude oil for production monitoring, custody transfer, and process control.
- Measurement range: 0 – 25% or 0 – 65% water cut
- Accuracy: ±0.01% (Low Range) 0.1% (High Range)
- Output: 4-20mA analog + HART + Modbus RTU
- ATEX / IECEx certified for Zone 1 & 2
Available Configurations

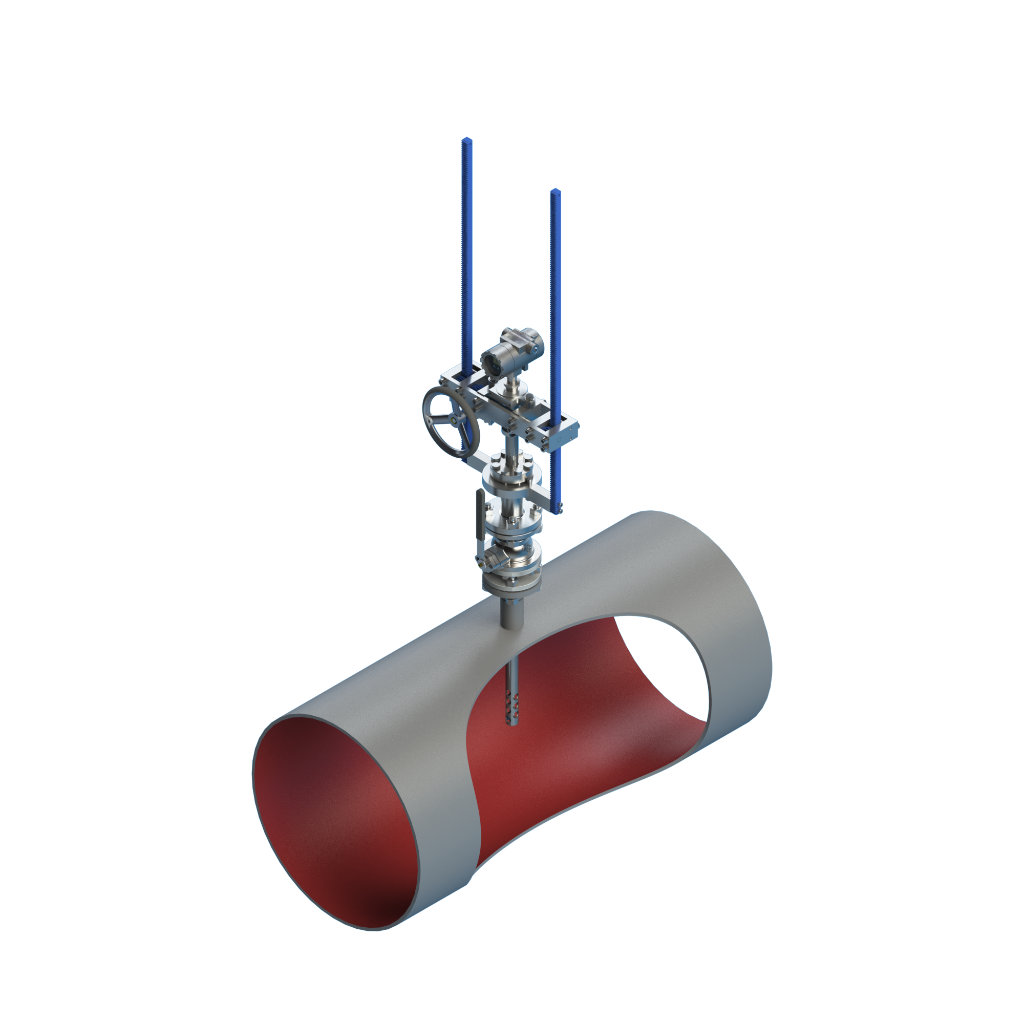

ZT-100-TEG Water in TEG Monitors
The ZT-100-TEG series is purpose-built for measuring water content in triethylene glycol (TEG) used in natural gas dehydration systems. Monitor lean and rich glycol streams to optimise reboiler performance and ensure gas meets water dew point specifications.
- Calibrated for TEG dielectric properties
- Lean and rich glycol monitoring
- Output: 4-20mA analog + HART + Modbus RTU
- ATEX / IECEx certified for Zone 1 & 2
Available Configurations
ZT-610 Interface Detector
A capacitance-based probe that senses oil-water transitions in tanks, vessels, and drain lines. Unlike a simple level switch, the ZT-610 provides a continuous reading across the full interface zone, distinguishing between dry oil, emulsion, and free water.
- Continuous 4-20mA output across the interface
- Sub-second response to phase transitions
- Two configurable relay outputs for set point control
- ATEX / IECEx certified for Zone 1 & 2
ZT-620 Tank Dewatering Systems
Complete automated tank dewatering solution built around two ZT-610 Interface Detectors and task-specific control software. The system continuously monitors the oil-water interface and automatically drains accumulated free water, reducing manual operations and preventing off-spec product.
- Automatic oil-water interface detection
- Programmable drain cycles and set points
- Prevents oil carry-over during dewatering
- Reduces manual tank gauging and draining

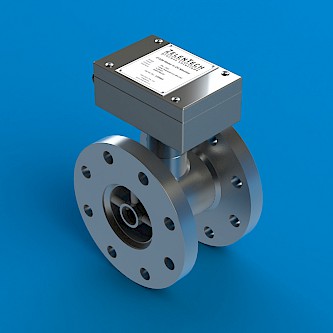

ZT-100 Water In Oil Monitors
The ZT-100 Water In Oil Monitor detects water contamination in virtually any type of oil or fuel — lubrication oil, hydraulic fluid, turbine oil, diesel, heavy fuel oil, and vegetable oils including crude palm oil. Measures total water content (dissolved, free, and emulsified) well beyond the saturation point where conventional sensors fail.
- Total water: dissolved, free, and emulsified
- Sensitivity from 0.01% water content
- 1-second response time, 24 VDC loop powered
- Variants for industrial oil, CPO, and marine fuel emulsions
Available Configurations
ZTMX Static Mixers
Pipeline static mixing elements designed to homogenise multi-phase flow upstream of sampling points and measurement instruments. Ensures representative samples in custody transfer and allocation metering systems.
- Low pressure drop design
- No moving parts — zero maintenance
- Available in carbon steel and stainless steel
- Custom sizes to match pipeline specifications
Specialised Solutions
ZT-100 Water In Oil Monitors
Continuous monitoring of water contamination in lubrication oil systems for rotating machinery and marine applications.
ZT-100 Water In Fuel Emulsions (WIFE)
Specialised monitoring for water content in fuel emulsion systems, ensuring optimal fuel-water ratios.
ZT-100 Water In CPO Monitors
Dedicated water content measurement for crude palm oil processing and quality control.
